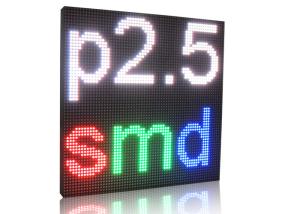

Small Pixel Pitch P2.5 Full Color LED Module Super Thin For Supermarket / Pharmacy

Brand Name : Jinhe

Model Number : P2.5

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1 square meter

Price : Negotiable

Payment Terms : T/T, Western Union

Delivery Time : 15 working days after receiving the deposit

Packaging Details : Wooden case, flight case

Pixel Pitch : 2.5 mm

Module Size : 160 * 160 mm

Pixel Configuration : SMD 3in1

Package Mode : SMD 2121

Display Function : Video

Brightness : 1200cd / sqm

Contact Now

Small Pixel Pitch P2.5 Full Color LED Module Super Thin For Supermarket / Pharmacy

Specifications:

※ Module parameter
Technical parametersUNIT Parameters
Pixel pitchMM2.5
Module sizeMML160*H160*T13
Physical density/M2160000
Pixel configurationR/G/B1,1,1
Driving method Constant Current 1/32scan
LED EncapsulationSMD2121 Black light
Display resolutionDOTS64X64=4096
Module weightKG0.19
Module working voltageVDC5
Module consumptionW35
※ Screen parameter
Viewing angleDeg.140 °
Option distanceM2-30
Driving device 2016/5020
Every square metre modulePCS39.06
Maximum powerW/ M21400
Frame FrequencyHZ/S≥60
Refresh frequencyHZ/S≥320
Equilibrium brightnessCD/ M2≥1500
Working environment temperature0C-10~60
Working environment humidityRH10%～70%
Display working voltageVACAC46～54HZ,220V±15%/110V±15%
Colour temperature 8500K-11500K
Gray scale/color ≥16.7M color
Input signal RF S-Video RGB etc
Control system PCTV nonlinearity card,DVI display card,Linsn control system
Mean free error timeHOURS＞5000
LifeHOURS100000
Lamp failure frequency ＜0.0001
Antijam IEC801
Safety GB4793
Resist the electricity 1500V last 1min No breakdown
Steel box weightKG/ M240 (standard steel box)
Earth leakage currentmA
IP rating The back IP40,The front IP50
Cabinet size (for reference)mm

L640Xh640x80




Features:

1. Factory wholesale directly, complete specifications, adequate inventory. For each model, 5000~10000pcs in stock

2. First-class Taiwan LED chip.Supplied by Epistar of Taiwan & other high strictly selected LED chip to ensure the long lifetime and high brightness

3. High Contrast ratio: above 2000:1, very high level to ensure a vivid image of our LED display screen system

4. Clear vivid image quality. more than 130 degree in horizontal and vertical to ensure your attracting more audience to get short ROI of your LED display screen's investment

5. Long-term Brightness: use high quality led chip and lamp to ensure led display can last 11 years with low Lumens depreciation

6.High definition. led display with high resolution to keep good video effect



Applications:

Business Organizationssupermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices, hospital, schools;

Public Placessubway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms
EntertainmentsMovie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
Our services:
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
Welcome to your inquiry! :-)
